In the realm of precision engineering, our portable line boring machine factory, with over 20 years of expertise in manufacturing on-site portable mechanical equipment, proudly introduces the LBM150 Portable Line Boring Machine. This state-of-the-art in situ line boring machine has set a new benchmark in shipyard stern rudder on-site line boring machining, delivering unparalleled accuracy and reliability for the maritime industry. The LBM150 has recently demonstrated its exceptional capabilities in the online repair of welded ship stern rudder bores, achieving a remarkable bore accuracy with a radial runout of 0.02mm—surpassing the stringent standards set by shipyard owners. This article delves into the advanced features of the LBM150, its meticulous manufacturing process, and its transformative impact on customized on-site line boring machine applications.
The LBM150: A Pinnacle of Precision in Portable Line Boring
The LBM150 portable line boring machine is engineered to address the demanding requirements of on-site machining, particularly in the repair and restoration of critical components such as ship stern rudder bores. Designed as a customized on-site line boring machine, the LBM150 combines portability, precision, and durability, making it an indispensable tool for shipyards and industrial maintenance teams worldwide.
Key performance metrics of the LBM150 include:
Bore Accuracy (Radial Runout): 0.02mm, exceeding industry standards for shipyard applications.
Boring Bar Straightness: 0.06mm/meter, ensuring consistent linear precision.
Boring Bar Roundness: 0.03mm/diameter, contributing to flawless machining outcomes.
Surface Roughness (Finish): Ra 1.6 to Ra 3.2, delivering a smooth, high-quality surface.
Concentricity: Dependent on the adjustment of the supporting arm, with skilled operators achieving optimal alignment.
Flatness (Facing Head): 0.05mm, ensuring precision in end-milling operations.
These specifications highlight the LBM150’s capability to perform high-precision repairs in challenging on-site environments, such as shipyard stern rudder on-site line boring machining, where access and conditions can be restrictive. The machine’s compact design and robust construction make it a versatile solution for in situ line boring machine tasks, minimizing downtime and eliminating the need to transport large components to off-site facilities.
Applications in Shipyard Stern Rudder On-Site Line Boring Machining
The maritime industry relies heavily on the integrity of stern rudder systems, which are critical for vessel navigation and safety. Wear, corrosion, or damage to rudder bores can compromise performance, necessitating precise repair solutions. The LBM150 portable line boring machine excels in online repair of welded stern rudder bores, restoring them to their original specifications with exceptional accuracy.

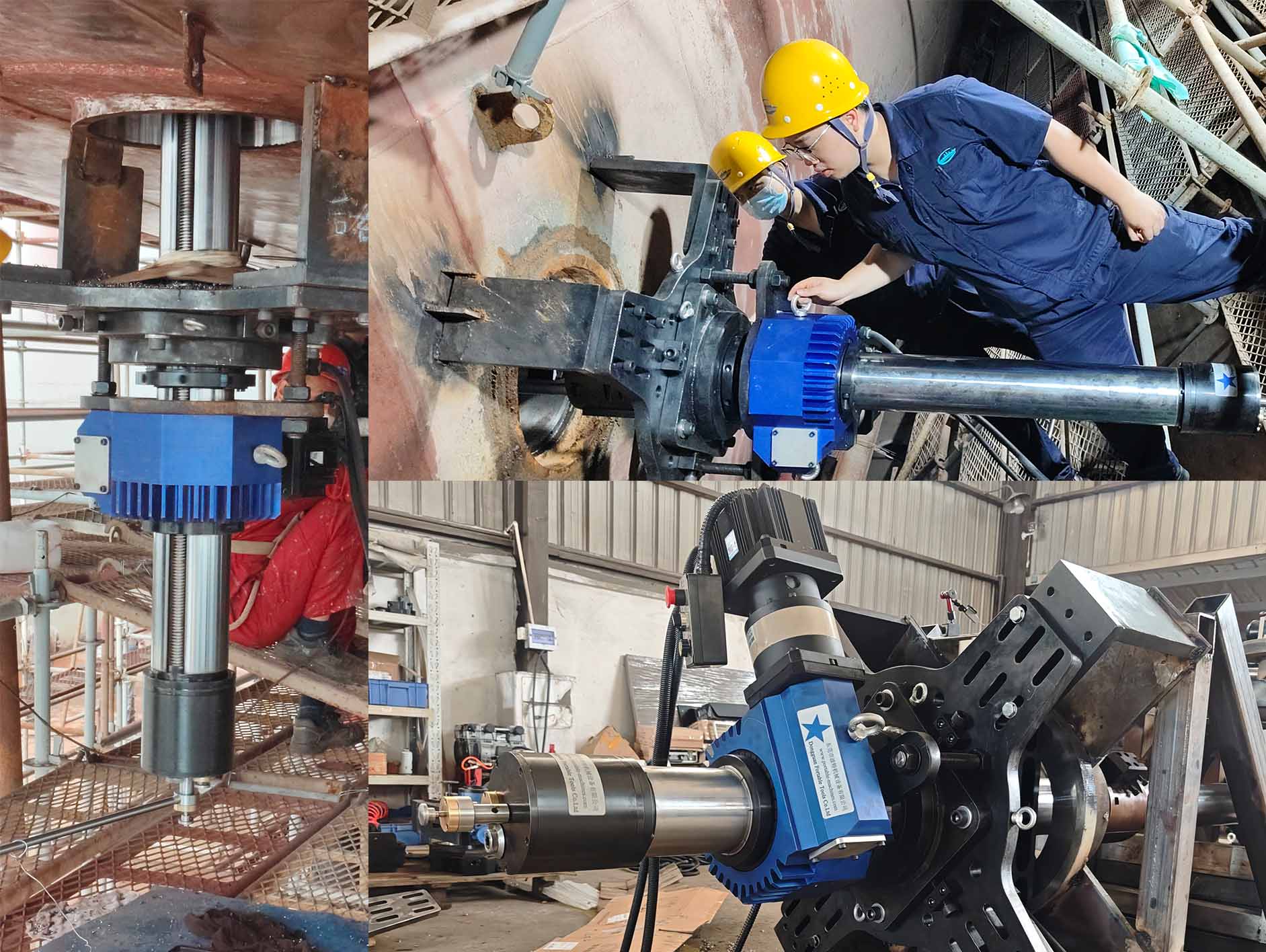

In a recent project, the LBM150 was deployed to repair a welded stern rudder bore in a shipyard. The machine’s ability to achieve a radial runout of 0.02mm ensured that the repaired bore met and exceeded the owner’s operational standards. This level of precision is critical in ensuring the rudder operates smoothly, reducing vibration and wear during vessel operation. The LBM150’s portability allowed technicians to perform the repair directly on-site, saving significant time and cost compared to traditional methods that require disassembly and off-site machining.
The success of the LBM150 in shipyard applications underscores its role as a game-changer in the field of on-site line boring machine technology. By offering a customized on-site line boring machine solution, our portable line boring machine factory empowers shipyards to maintain operational efficiency while upholding the highest standards of quality.
Manufacturing Excellence: The Boring Bar Process
At the heart of the LBM150’s performance lies its meticulously crafted boring bar, which is engineered to deliver superior strength, durability, and precision. The manufacturing process of the boring bar is a testament to our portable line boring machine factory’s commitment to quality and innovation. Below is a detailed overview of the boring bar’s production process, which ensures its exceptional performance in on-site line boring machine applications.
1. Material Selection
The foundation of a high-quality boring bar begins with the selection of premium materials. We use 42CrMo, a high-strength alloy structural steel renowned for its excellent mechanical properties, including high tensile strength, toughness, and wear resistance. This material is ideal for withstanding the rigors of in situ line boring machine operations, where the boring bar is subjected to significant bending forces, vibrations, and abrasive conditions.
2. Cutting and Forging
The process begins with cutting the raw 42CrMo steel to the required dimensions. This is followed by forging, where the material is hammered to enhance its internal structure and mechanical properties. Forging improves grain flow, reduces defects, and increases the material’s toughness, preparing it for subsequent processing.
3. Annealing
To eliminate internal stresses and enhance machinability, the forged material undergoes annealing. This heat treatment process involves heating the steel to a specific temperature and cooling it slowly, resulting in a more uniform microstructure and improved workability for machining.
4. Rough Machining
The annealed material is then subjected to rough machining processes, such as turning and milling, to form the basic shape of the boring bar. This step establishes the initial dimensions and prepares the component for further refinement.
5. Heat Treatment (Quenching and Tempering)
The boring bar undergoes a quenching and tempering process to optimize its mechanical properties. Quenching involves heating the steel to a high temperature and rapidly cooling it to harden the material, while tempering reduces brittleness and residual stresses, enhancing toughness and ductility. This heat treatment ensures the boring bar can withstand the demanding conditions of shipyard stern rudder on-site line boring machining.
6. Precision Machining
Precision machining is a critical step in achieving the LBM150’s exacting tolerances. Using advanced grinding techniques, the boring bar is machined to achieve a straightness of 0.06mm/meter and a roundness of 0.03mm/diameter. These tight tolerances ensure minimal deflection and vibration during operation, resulting in superior machining accuracy.
7. High-Temperature Tempering
To further stabilize the material’s microstructure and eliminate residual stresses, the boring bar undergoes high-temperature tempering. This step enhances dimensional stability and ensures consistent performance over extended periods of use.
8. Fine Grinding
Fine grinding is performed on critical surfaces to achieve the desired surface roughness (Ra 1.6 to Ra 3.2). This process ensures a smooth finish that minimizes friction and wear during machining, contributing to the longevity of both the boring bar and the machined components.
9. Nitriding
The final heat treatment step involves nitriding, a surface-hardening process that infuses nitrogen into the steel’s surface to create a hard, wear-resistant layer. Nitriding significantly enhances the boring bar’s durability, corrosion resistance, and fatigue strength, making it ideal for the harsh conditions encountered in on-site line boring machine applications.
10. Final Inspection and Assembly
After completing all machining and heat treatment processes, the boring bar undergoes rigorous quality control checks to verify its dimensional accuracy, surface quality, and mechanical properties. Once approved, the boring bar is either stored for inventory or assembled into the LBM150 portable line boring machine, ready for deployment in the field.
The Importance of Process and Material Selection
The boring bar’s performance is directly influenced by the choice of material and the precision of the manufacturing process. The use of 42CrMo, combined with a carefully controlled sequence of heat treatments and machining operations, ensures that the boring bar exhibits exceptional resistance to bending, wear, and impact. These properties are critical for maintaining machining accuracy in demanding applications such as shipyard stern rudder on-site line boring machining.
The nitriding process, in particular, is a key differentiator, as it significantly enhances the surface hardness of the boring bar without compromising its core toughness. This allows the LBM150 to operate reliably under high loads and extended use, delivering consistent results in even the most challenging environments.
Advantages of the LBM150 in On-Site Machining
The LBM150 portable line boring machine offers several advantages that make it a preferred choice for shipyards and industrial maintenance teams:
Portability: Its compact and lightweight design allows for easy transport and setup in confined spaces, making it ideal for in situ line boring machine tasks.
High Precision: With a radial runout of 0.02mm and a surface finish of Ra 1.6 to Ra 3.2, the LBM150 delivers precision that meets or exceeds industry standards.
Versatility: The machine is adaptable to a wide range of applications, from shipyard stern rudder repairs to other industrial components requiring on-site machining.
Efficiency: By enabling repairs to be performed on-site, the LBM150 eliminates the need for costly disassembly and transportation, reducing downtime and operational costs.
Operator Control: The machine’s concentricity is highly dependent on the skill of the operator and the adjustment of the supporting arm, allowing experienced technicians to achieve optimal results.
Commitment to Quality and Customization
As a leading portable line boring machine factory, we pride ourselves on our ability to deliver customized on-site line boring machine solutions tailored to the specific needs of our clients. The LBM150 is a testament to our dedication to innovation, precision, and reliability. Our team of engineers and technicians works closely with clients to understand their requirements, ensuring that each machine is optimized for its intended application.
Whether it’s restoring a worn stern rudder bore in a shipyard or performing precision machining on other critical components, the LBM150 portable line boring machine is designed to deliver exceptional results. Its robust construction, advanced manufacturing processes, and high-precision capabilities make it an essential tool for industries that demand uncompromising quality.
The LBM150 portable line boring machine represents the pinnacle of precision engineering, offering unmatched performance in shipyard stern rudder on-site line boring machining and other in situ applications. With its ability to achieve a radial runout of 0.02mm, a boring bar straightness of 0.06mm/meter, and a surface finish of Ra 1.6 to Ra 3.2, the LBM150 sets a new standard for portable line boring machines. Its meticulously crafted boring bar, made from high-strength 42CrMo steel and subjected to advanced heat treatment and machining processes, ensures durability, precision, and reliability in even the most demanding environments.
As a trusted portable line boring machine factory with over two decades of experience, we are committed to delivering customized on-site line boring machine solutions that meet the unique needs of our clients. The LBM150 is a shining example of our dedication to excellence, empowering shipyards and industrial maintenance teams to achieve superior results with minimal downtime.
