On-Site Line Boring for Tapered Holes: Precision, Flexibility, and Professional Machining Solutions
What Is a Tapered Hole?
A tapered hole is a hole whose diameter gradually changes along its depth. Unlike a standard cylindrical hole, a tapered hole has a conical internal surface, meaning that one end of the hole is larger or smaller than the other. The difference in diameter is controlled by a specific taper angle or taper ratio, and the entire hole must maintain accurate geometry to ensure proper assembly and operation.
Tapered holes are widely used in heavy machinery, construction equipment, mining equipment, shipbuilding, power-generation equipment, hydraulic systems, agricultural machinery, and industrial manufacturing. They are commonly required for components such as tapered pins, shafts, bushings, bearings, hydraulic components, connecting mechanisms, and specialized mechanical joints.
When a tapered hole becomes worn, damaged, misaligned, or oversized, conventional machining methods may not be practical, especially when the component is too large or difficult to transport. This is where a portable line boring machine and an on site line boring machine become extremely valuable.
Why Use a Portable Line Boring Machine for Tapered Holes?
Machining a tapered hole in a large machine component can be a major challenge. Removing the component and transporting it to a conventional machine shop may involve significant labor, transportation costs, disassembly, and downtime. In many cases, the component is simply too large or too heavy to move.

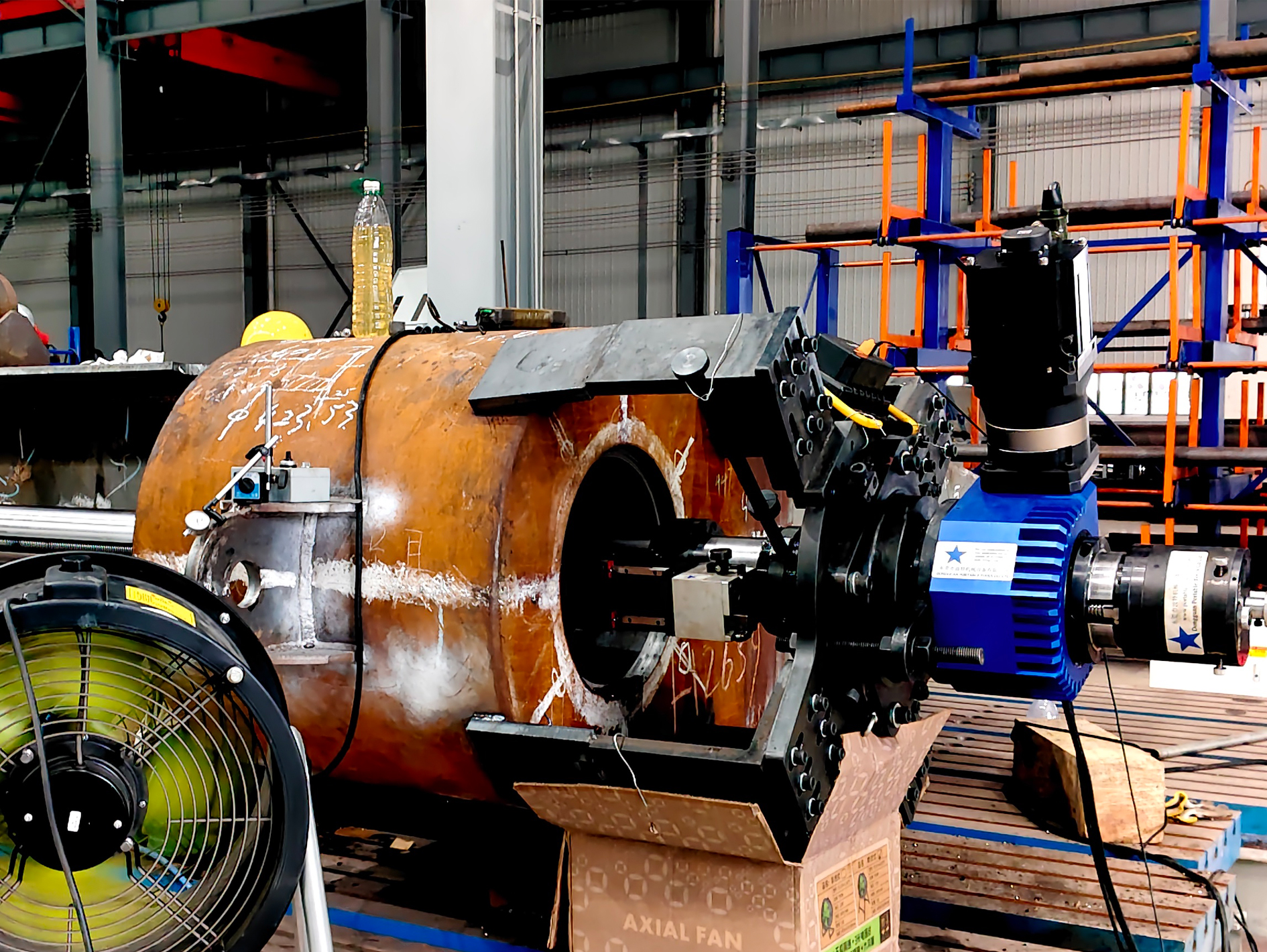

A portable line boring machine solves this problem by bringing the machining equipment directly to the workpiece. An on site line boring machine can be installed at the job location, allowing operators to repair or manufacture the required tapered hole without removing the entire component.
A professional portable tapered boring machine is especially useful when the hole must be machined accurately while maintaining the original position and alignment of the component. Instead of moving a massive workpiece to a machine shop, the machine itself is brought to the workpiece.
The major advantages include reduced transportation costs, shorter repair time, lower equipment downtime, improved flexibility, and the ability to perform machining directly in the field. For heavy-duty industrial applications, an in situ line boring machine for tapered hole machining can provide an efficient alternative to conventional workshop machining.
Advantages of Portable Tapered Hole Machining
A high-quality portable tapered boring machine offers several important advantages.
First, it provides excellent mobility. The machine can be transported to construction sites, factories, shipyards, mines, power plants, and other industrial locations.
Second, it can significantly reduce downtime. Instead of dismantling and transporting a large machine component, technicians can complete the machining work directly on site.
Third, a properly designed on site line boring machine can achieve high machining accuracy. The boring bar can be precisely aligned with the existing hole, allowing the operator to restore the required geometry while minimizing alignment errors.
Fourth, portable equipment provides considerable customization. Different boring bar diameters, machining lengths, drive systems, cutting tools, mounting methods, and taper angles can be configured according to the application.
For difficult field repairs, an in situ line boring machine for tapered hole applications can therefore combine mobility, precision, efficiency, and adaptability.
How to Machine a Tapered Hole with a Portable Line Boring Machine
Machining a tapered hole requires more than simply enlarging a cylindrical hole. The cutting tool must move along a controlled path so that the hole diameter changes gradually according to the specified taper.
The first step is to inspect and measure the existing hole. Technicians should determine the original hole diameter, required final dimensions, hole depth, taper angle, alignment, and surface condition.
The second step is to install and align the portable line boring machine. The boring bar must be securely supported at both ends whenever the application allows. Proper support is essential because excessive vibration or bar deflection can negatively affect machining accuracy.
The third step is to establish the machining reference. The boring bar must be accurately aligned with the required hole centerline. Precision alignment is one of the most important factors when using an on site line boring machine.
The fourth step is to configure the cutting movement for the tapered geometry. Depending on the machine design, the taper can be produced through controlled changes in tool position, specialized tooling, adjustable cutting mechanisms, or a programmed machining system.
The fifth step is rough machining. A small amount of material is removed first to establish the basic tapered profile. Heavy cuts should generally be avoided when precision and surface quality are important.
The final stage is precision boring. The cutting depth is reduced, cutting parameters are optimized, and multiple measurements are taken during the process. The final tapered hole should be checked for diameter, taper angle, straightness, concentricity, and surface finish.
How to Achieve Better Tapered Hole Accuracy
There are several practical methods for achieving better results with a portable tapered boring machine.
Accurate alignment should always come first. Even an advanced portable line boring machine cannot compensate for poor initial alignment. The boring bar supports should therefore be rigid, stable, and properly positioned.
Machining parameters should also be selected according to the material, hole diameter, cutting tool, and required surface finish. Stable cutting conditions help minimize vibration and tool deflection.
Another important practice is to measure the workpiece throughout the machining process rather than waiting until the final cut. Intermediate measurements allow technicians to identify dimensional deviations early and make corrections before the hole reaches its final size.
For demanding applications, it is also important to use experienced technicians. The combination of machine rigidity, precision alignment, suitable tooling, correct cutting parameters, and experienced operation is essential for producing a high-quality tapered hole.
Our Expertise in Portable Line Boring and On-Site Machine Tools
As a professional manufacturer and industry leader of portable line boring machines and on site machine tools, our company focuses on providing high-precision, reliable, and stable field machining solutions.
Our machines are supported by designers with more than 20 years of professional experience in machine design and field machining applications. From the beginning of the design process, our engineers focus on structural rigidity, machining accuracy, operating stability, ease of installation, and practical field requirements.
Quality control is also a core part of our manufacturing process. We use advanced CNC equipment from Germany and Japan to control critical machining processes and maintain high manufacturing standards. Experienced assembly technicians carefully assemble and inspect each machine, helping ensure that the final equipment delivers reliable machining accuracy and stable performance.
More importantly, our company has its own professional field machining team. Real-world on-site machining experience continuously provides valuable feedback for improving machine structures, tooling systems, operating methods, and equipment configurations. At the same time, we continuously update our equipment and machining technology based on actual field requirements.
This combination of experienced designers, advanced CNC manufacturing equipment, skilled assembly technicians, and professional field machining experience allows us to continuously improve the practicality, stability, accuracy, and reliability of our products.
Whether you need a standard portable line boring machine, an on site line boring machine, or a customized portable tapered boring machine, our goal is to provide equipment that performs reliably in demanding real-world conditions.
Customized Tapered Hole Machining Equipment
Every tapered hole application can be different. Hole diameter, taper angle, machining length, workpiece structure, installation space, material, required tolerance, and operating environment may all affect the design of the equipment.
For this reason, we provide customized solutions for in situ line boring machine for tapered hole applications. If your project requires special dimensions, tooling, drive systems, mounting structures, or machining capabilities, our engineering team can develop a solution according to your requirements.
If you are looking for a reliable manufacturer of portable line boring machines and on site machine tools, we welcome you to discuss your application with us.
Our professional experience, advanced manufacturing capabilities, field machining knowledge, and commitment to quality enable us to provide dependable solutions for tapered hole machining.
Customized portable tapered boring machine solutions are available. Consider our OEM/ODM service and create your own dedicated on-site machining equipment. Contact us today to build a professional, reliable, and application-specific portable line boring machine for your unique machining requirements.
