Tapered Hole with Portable Line Boring Machines
What is tapered hole about the portable line boring machines?
A tapered hole is a precision bore that gradually increases or decreases in diameter along its length, forming a conical shape rather than a straight cylindrical form. This geometry is critical in many heavy engineering applications where components must fit securely with controlled interference or alignment. In industries such as marine propulsion and large-scale machinery, the ability to create accurate tapered holes ensures optimal load distribution and easy assembly or disassembly of shafts and housings.
Why bore tapered holes?
Tapered holes provide superior centering, self-locking characteristics, and better torque transmission compared to parallel bores. They accommodate thermal expansion, reduce vibration, and facilitate precise alignment in high-stress environments. For example, in shipbuilding and repair, the Machining of ship rudder stock holes and stern tube holes often requires tapered configurations to match propeller shafts or rudder stocks perfectly. Without accurate tapered holes, misalignment can lead to premature wear, leakage, or catastrophic failure in marine systems. On site machining becomes essential here because transporting massive components to a workshop is impractical and costly.
How to bore tapered holes in general?
Traditional methods involve specialized taper boring attachments on stationary machines or CNC equipment with programmed tool paths. Operators calculate the required taper ratio (typically expressed as inches per foot or degrees) and adjust the boring bar angle or use offset tools to generate the cone. Precision measurement with gauges and laser alignment tools verifies the final dimensions. However, for large or in-situ workpieces, these conventional approaches fall short.

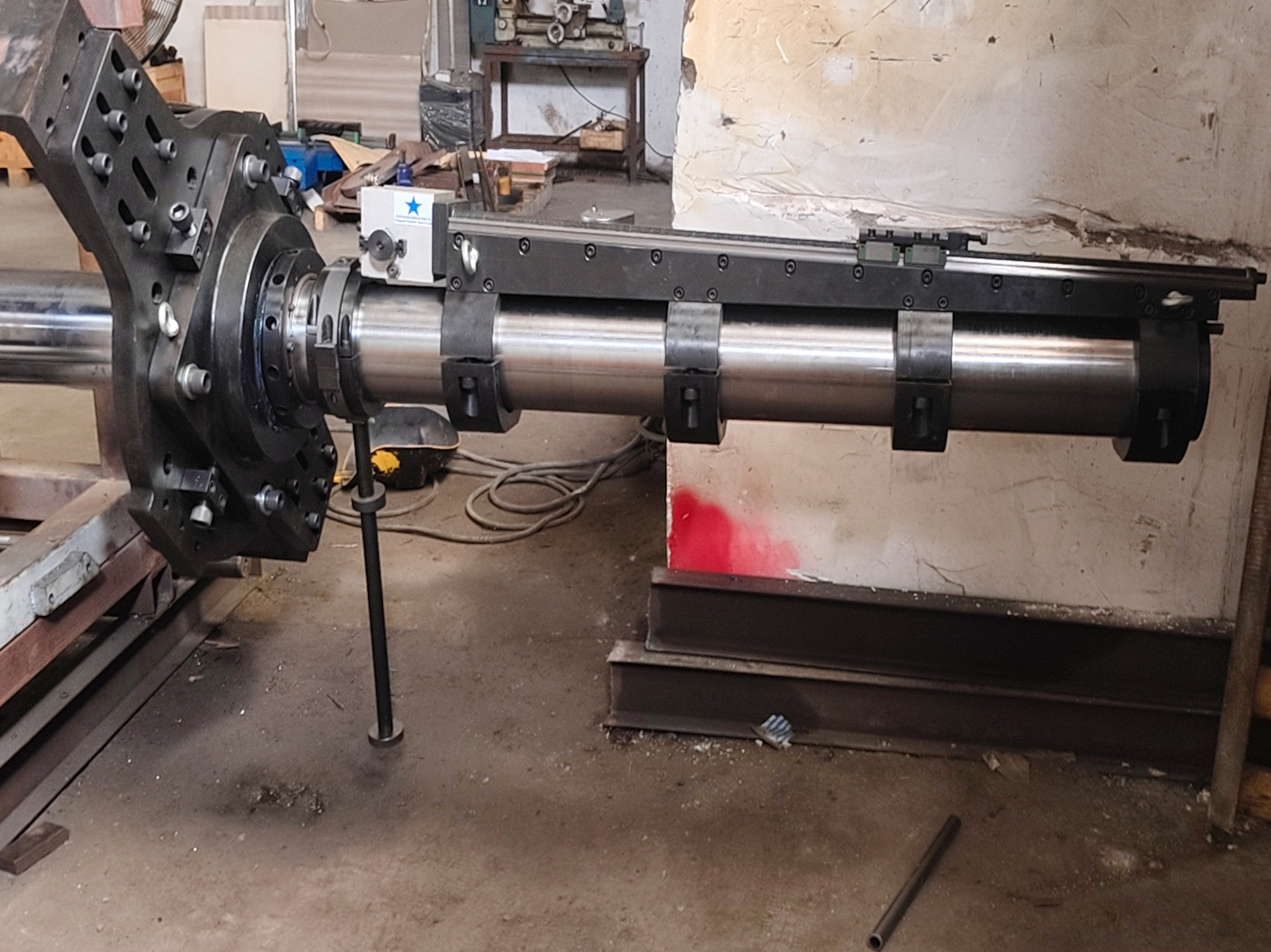

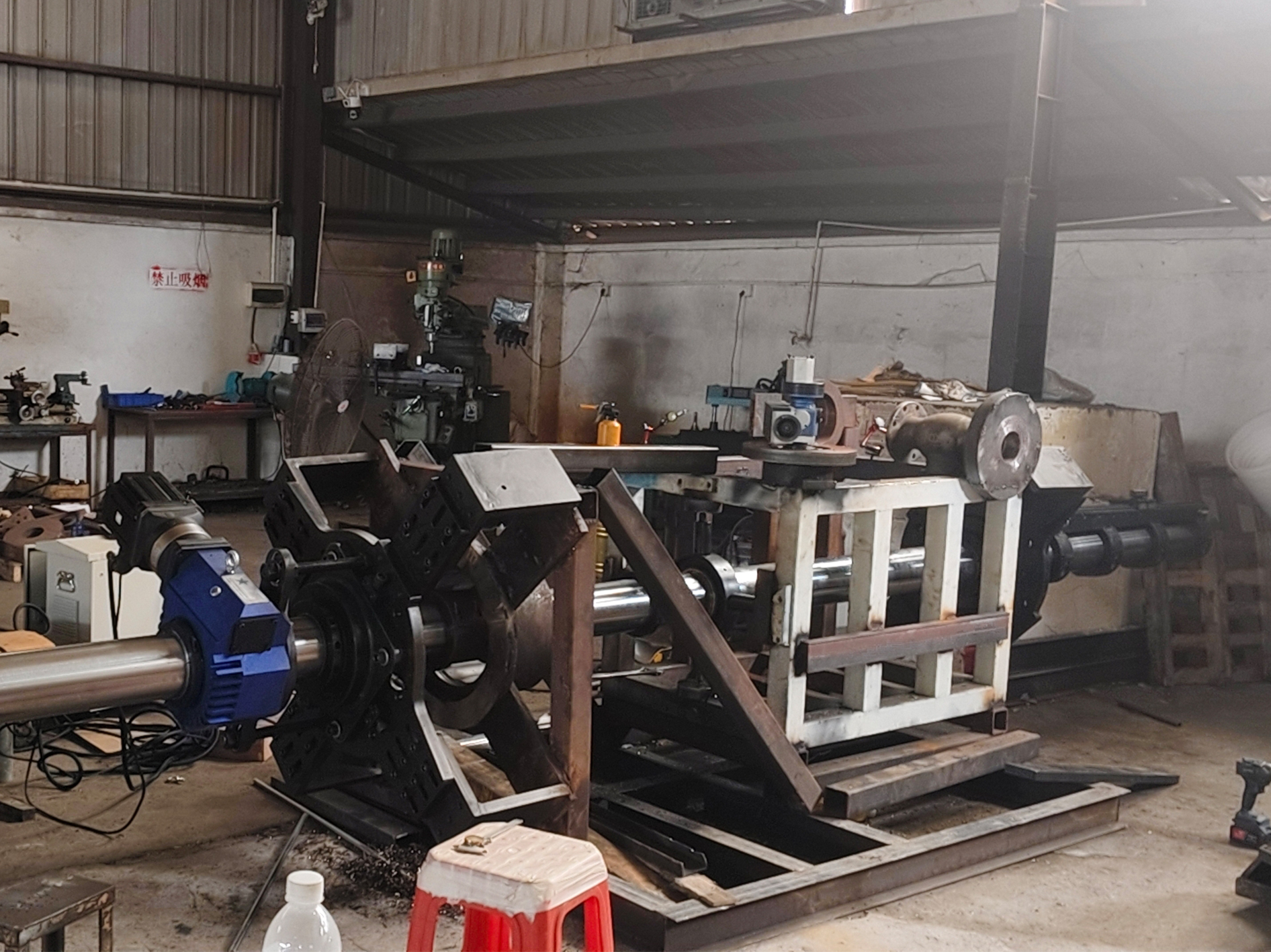

This is where the portable line boring machine excels. A portable line boring machine is a versatile on site machining tool designed for field repairs of oversized bores. To bore a tapered hole with a portable line boring machine, technicians first mount the machine using a sturdy boring bar supported at both ends for rigidity. They install a taper boring head or adjustable tool slide that allows controlled radial movement as the bar advances axially. By synchronizing the feed rate with the radial offset—often via micrometer adjustments or CNC-assisted controls—the operator generates the precise taper. For Machining of ship rudder stock holes and stern tube holes, the portable line boring machine is positioned directly on the vessel’s stern tube or rudder housing. Alignment is achieved with laser or dial indicators to maintain centerline accuracy. Multiple passes with roughing and finishing tools ensure surface finish and dimensional tolerance meet class society standards. This on site machining capability minimizes downtime, as repairs occur without dry-docking the entire ship for extended periods.
The applications of tapered holes are widespread. Beyond marine engineering, they appear in wind turbine hubs, mining equipment, heavy cranes, and power generation turbines. In each case, the combination of portable line boring machine technology and expert tapered hole boring delivers reliable results in challenging field conditions.
Our company has decades of production and manufacturing experience with portable line boring machines and tapered hole solutions. As China’s leading manufacturer, we specialize in robust, high-precision equipment tailored for on site machining demands, including the Machining of ship rudder stock holes and stern tube holes. Welcome to customize your exclusive boring machine and other on-site processing equipment with us for superior performance and reliability.
